C-Quant
Straylight Meter for Quantification of Light Scattering in the Eye
With this product development, OCULUS is once again living up to its motto, “We focus on progress”. The C-Quant makes it possible to measure the amount of straylight in a human eye individually and reliably. The effect of increased straylight in the human eye can be compared to looking through a dirty windshield.

Functions

The Benefits
- The C-Quant is computer-controlled, so examination data and results can be saved
- The examinations are conducted monocularly

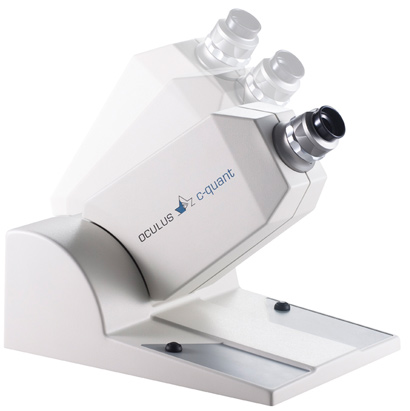

- The inclination angle of the unit can be adjusted to suit the patient’s requirements Show More

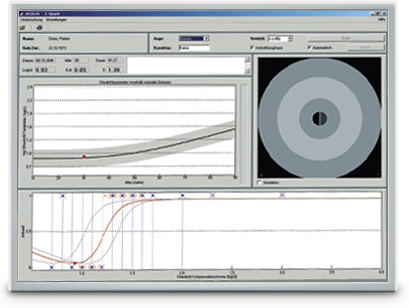

Presentation of the Results
- Absolute straylight value as a log(s)
- Graphic display of the straylight compared to an age-related normal examination time
- Standard deviation of the individual measuring points (Esd)
- Reliability coefficient (Q)
- Printout possible

Cause
Increased ocular straylight is almost always caused by a lens cataract, but can also be caused by the cornea too, e.g. after refractive surgery.
In short: Increased ocular straylight reduces visual acuity and thus impairs the quality of life.

Examination
The examination with the C-Quant is specifically designed for older patients and those with reduced visual acuity and takes approx. 1 to max. 2 minutes per eye.
Show MoreTechnical Data
Light source | white LED |
Maximum LED brightness | 300 cd/m² |
Size of the test field | 14° |
Examination duration | Approx. 1 minute |
Interface | USB or serial |
Weight | 4.4 kg |
Dimensions | 24.5 x 35.6 x 28.6 – 37.4 cm |
Included in delivery | C-Quant basic unit, power adapter, mains cable, USB cable, dust cover, set of lenses in wooden case, operating instructions, installation CD |
