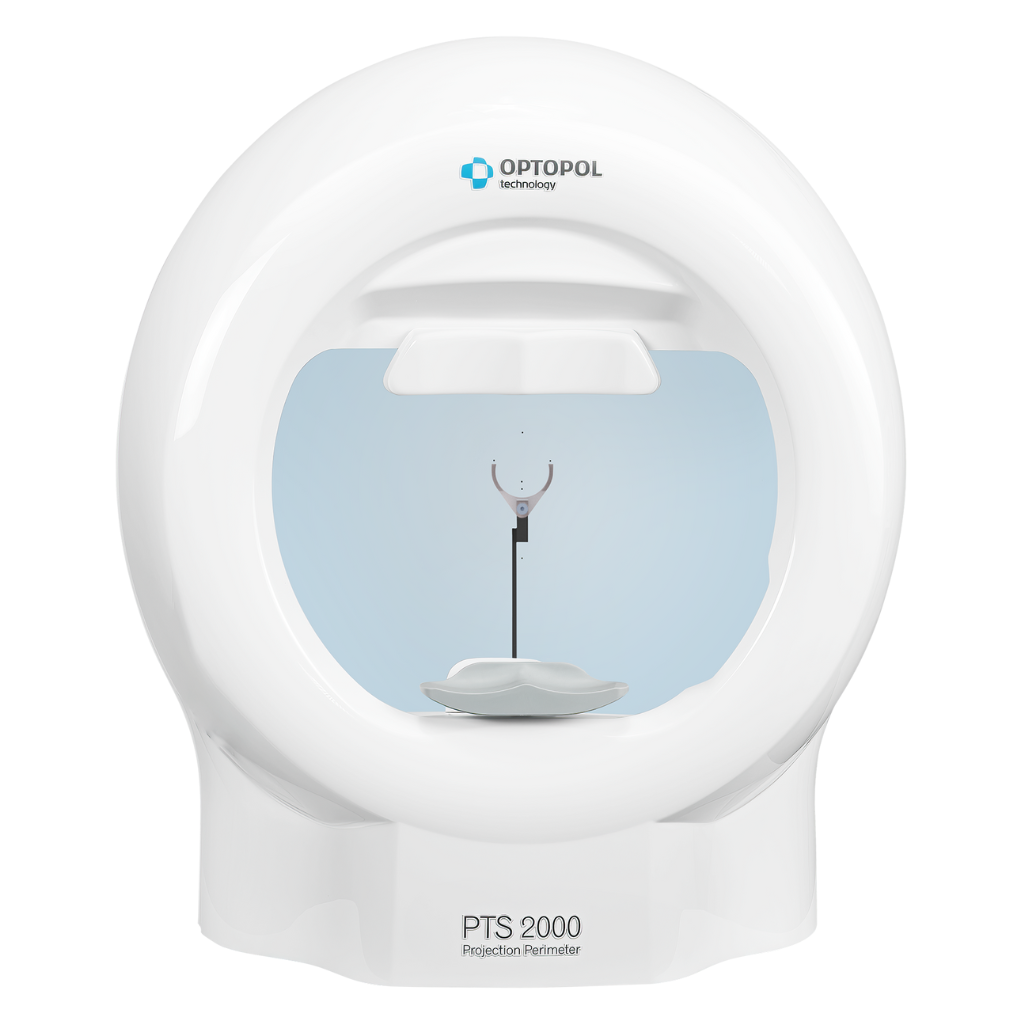

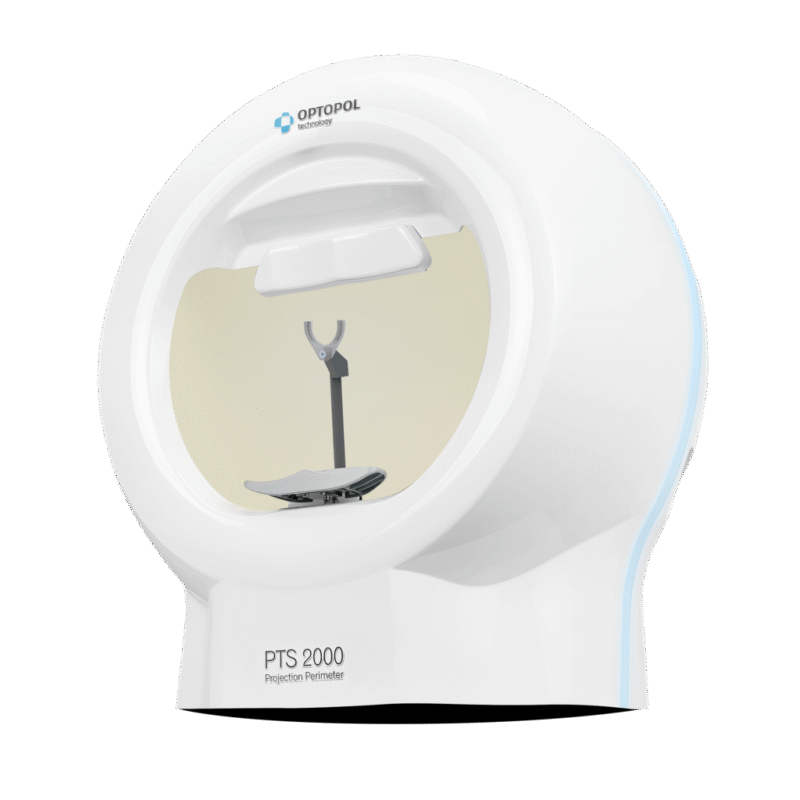

PTS 2000
Automated Projection Perimeter
Watch VideoLight up your practice.
The PTS 2000 is our top-of-the-line projection perimeter with modern and intuitive software available at your fingertips
The PTS automated perimeter series are modern diagnostic instruments for precise and fast testing of visual fields. Beside standard perimetry testing techniques they implement all of the latest visual field testing approaches saving time and deliver cutting edge precision and reliability. Intuitive software with powerful networking and EMR integration, combined with maintenance free and reliable hardware creates the best tools for visual field testing.
ALL THAT YOU NEED
- Complete set of standard perimetry tests.
- Variety of threshold algorithms and screening techniques.
- Binocular Driver’s Test, Flicker perimetry and Blue on Yellow.

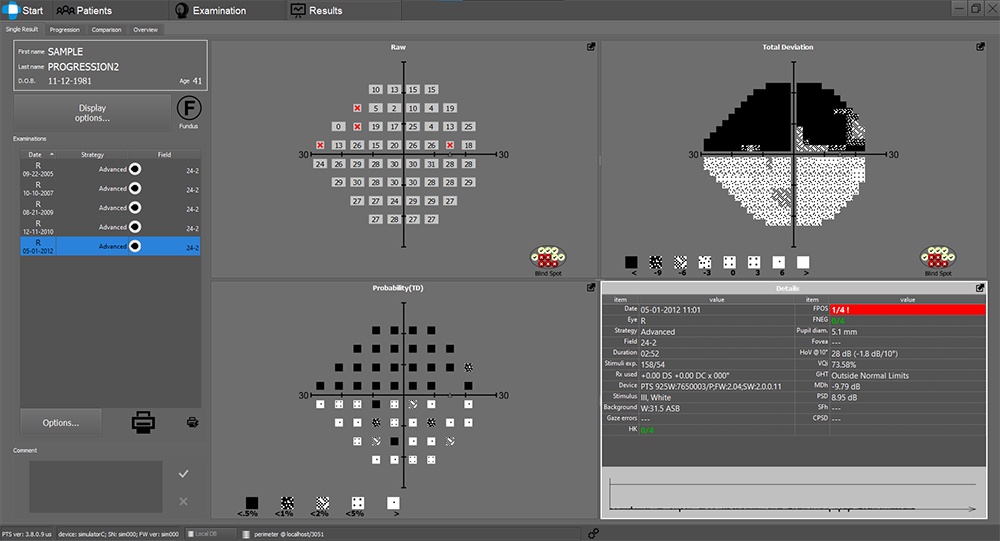

- Complete palette of analysis tools for quick and thorough assessment of visual fields.

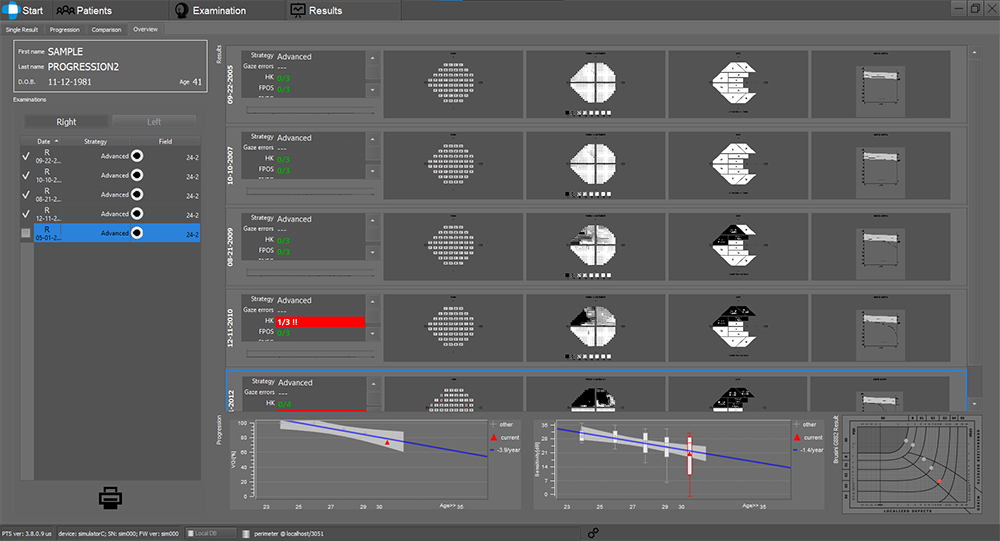

- Comparison and progression module available in standard package.
- Kinetic testing for quick evaluation of peripheral field loss.
- Standard test reports and global indicies.
- Automatic and manual kinetic perimetry.
- 180° horizontal and 130° vertical testing range for peripheral screening.
- Aspherical bowl for compact dimensions.
- All Goldmann stimuli sizes and colors used in perimetry.
- 30-2, 24-2 and 10-2 testing fields.
THRESHOLD IN 3 MINUTES*
- Advanced Threshold strategy – quicker examination without loss in result resolution.
- 24-2/24A field tested in less than 3 minutes (30-2/30A in less than 4 minutes)*.
- Provides more detailed information than screening strategies in comparable duration.
SUPREME RELIABILITY
- High resolution camera for precise monitoring of patients’ compliance.
- Blink control – no stimuli are omitted due to normal blinking, test is put on hold until the eye is opened again.
- Eye tracking – analyses pupil movement and assures supreme reliability of test results.
- Voice messages assist operator and patient during the examination.
FLEXIBILITY FOR TIME

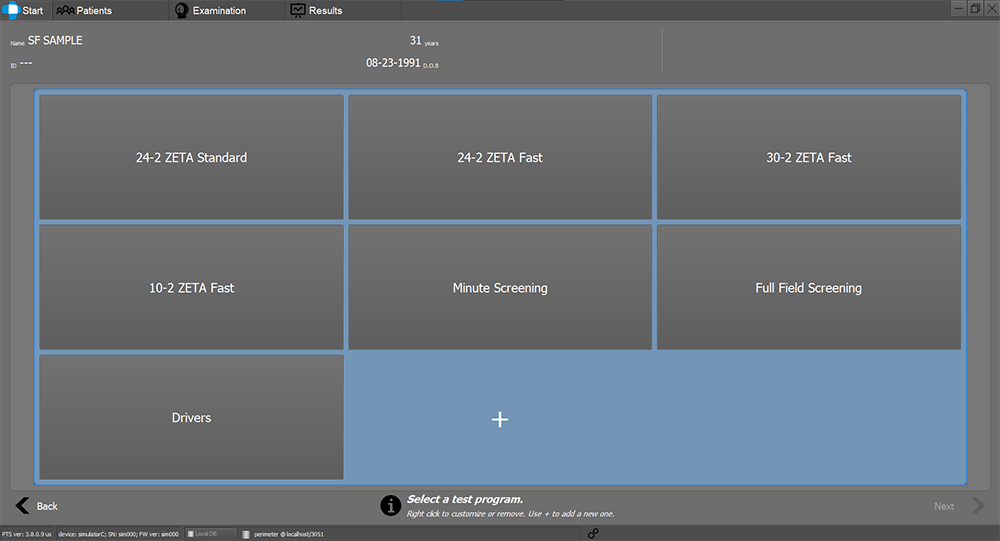

- Rich library of predefined test fields and programs.
- Custom test settings can be stored and accessed with a single touch.
- Follow-up tests can be performed by simple selection of base examination.
- Partial test results of not completed test can be continued at a later date.
DICOM, GDT, EMR, NETWORK INTEGRATION

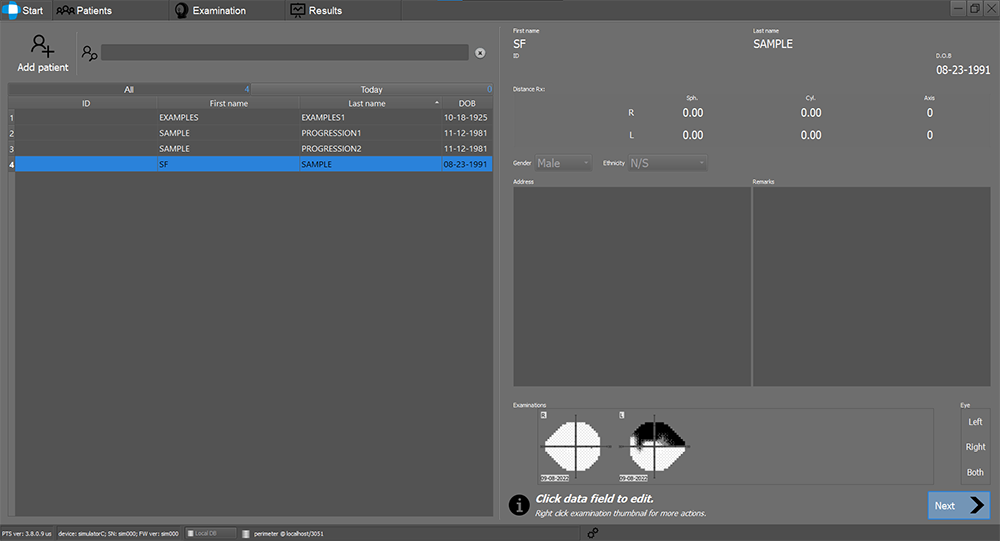

- Built-in networking features – data can be accessed from anywhere within your network.
- Out of the box DICOM support.
- Storing visual field reports on the DICOM image server.
- DICOM Modality Worklist support.
- GDT interface and custom EMR’s based on text file interface.
* depends on patient condition
With the PTS 2000, perimetry is more simple than ever before with everything from a quick screening test, to manually controlled kinetic perimetry.
The PTS 2000 has one of the world’s largest field testing ranges and options, including all of the Goldmann stimuli sizes and stimuli colors used in perimetry.
Explore our Features
PTS 2000
Fast Thresholding
Using ZETA™ thresholding algorithms, test your patients in under 3 minutes.

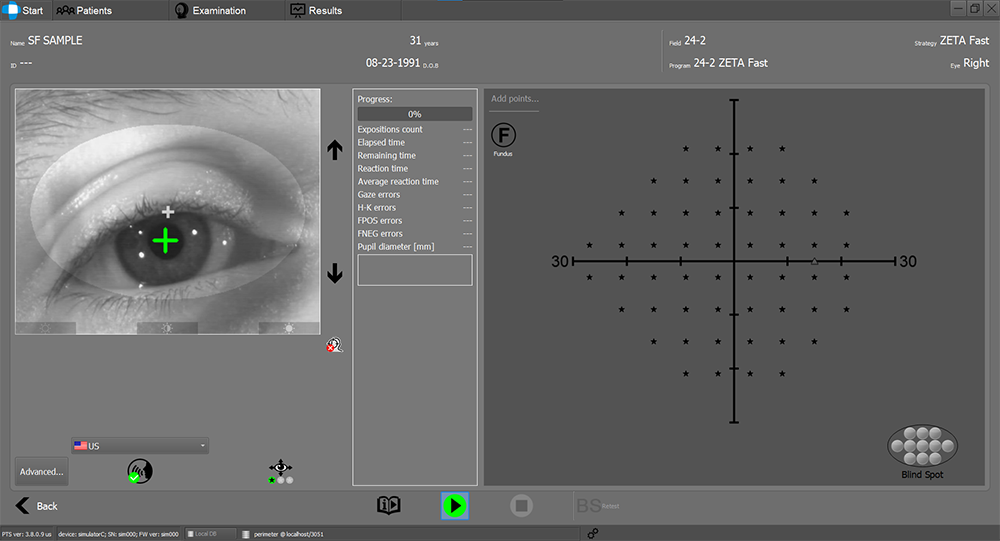

Eye Tracking
Monitor patient pupil movement during examination.
Blink Detection
Our software detects when the eye is closed, and will not present stimuli to the patient.
Head Tracking
Live monitoring and automated adjustments throughout exams.

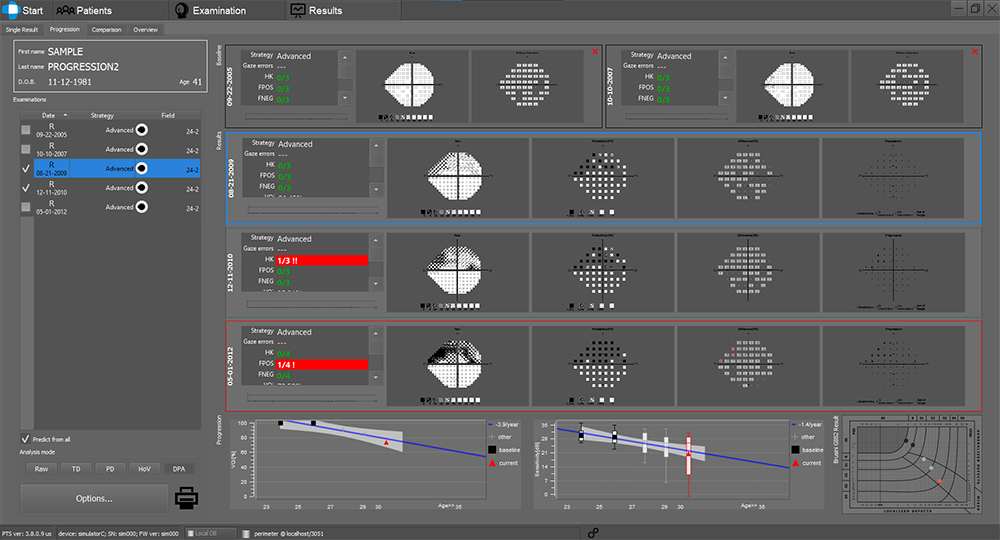

DPA™ Defect Progression Analysis
Create a baseline and follow disease progression over time.

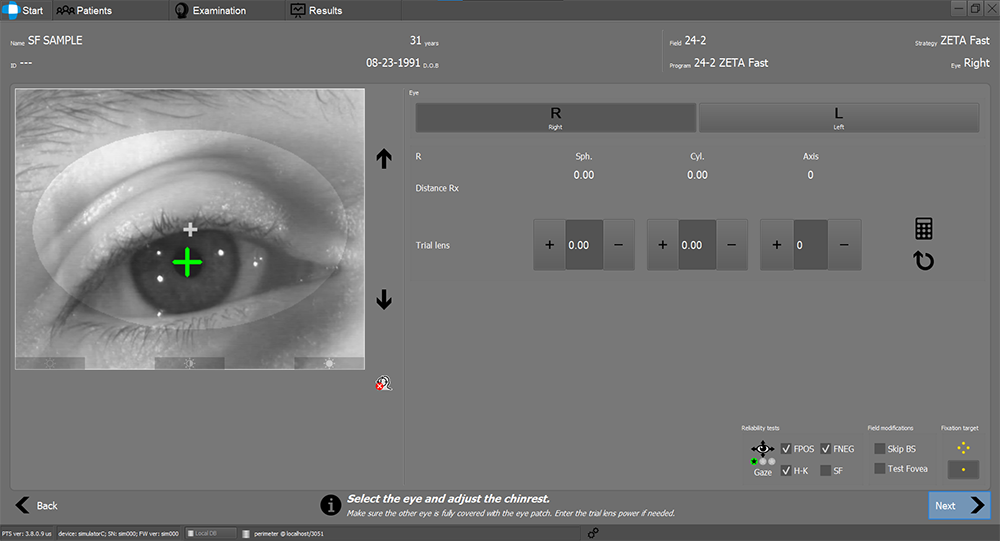

EyeSee™
In the review screen, click on any point during the exam to see the eye position.
Voice Guide
Voice messages assist operator and patient during the examination.

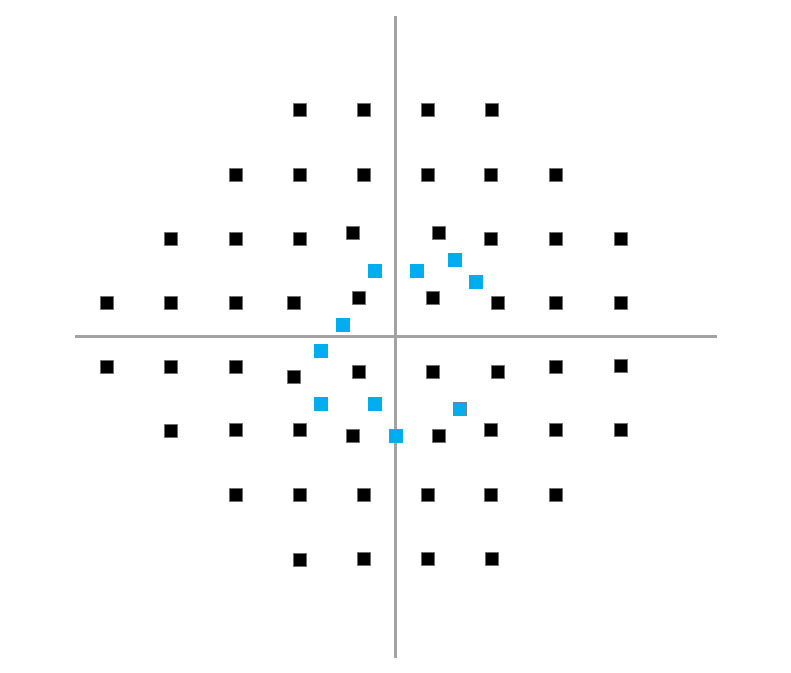

New 24-2C pattern now available.
Capture 10 additional central field locations with the new 24-2C pattern.
- 24-2 field with additional 10 central points.
- New points included may be used in a targeted approach where central defects are suspected.
- Location of new points are derived from points commonly affected in glaucoma
Voice Guide Instructions
Let our voice guide provide instructions for the patient during an exam. In 12 different languages.
- English, Spanish, French, Italian
- German, Polish, Czech, Danish
- Arabic, Lithuanian, Portuguese, Russian
Light or Dark Mode?
Switch between dark and light view. Reduce eye strain during testing in a darkened room.
- Easier to view in darkened room.
- Choose either Dark or Light depending on ambient light.

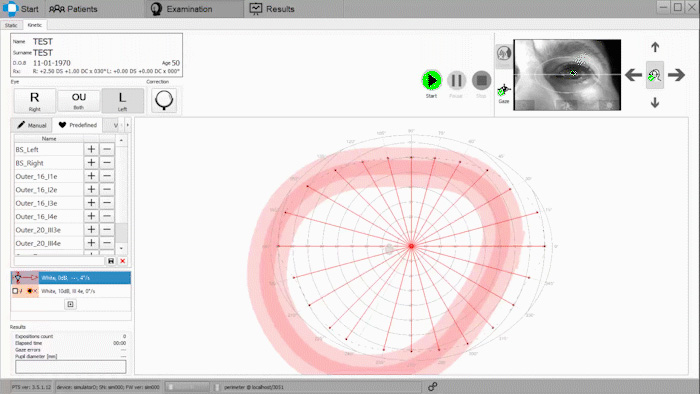

Kinetic Testing
Perform automated or semi-automated Kinetic perimetry with the PTS 2000.
- Create custom pre-set Kinetic patterns.
- Create on-the-fly Kinetic patterns that can be saved for future use.
- Adjust parameters such as stimulus size, brightness, color and speed.
- Easily draw the stimulus movement trajectory using a mouse.
BluGlow™ light band technology
Perform automated or semi-automated Kinetic perimetry with the PTS 2000.
BluGlow™ light band provides a minimal ambient light to the darkened testing area, providing operator and patient with the ability to navigate their surroundings.
Satellite office ready
Both our perimeters use the same great software. Perfect for seamless training across satellite offices.
- PTS 2000 perfect for busy and main locations.
- PTS 925Wi and 920 are great for a satellite or remote location.
- Both units use the same software, no learning curve for new staff.
- Windows 10 PRO, DICOM and Review Station SW all included.
Revolutionary value
How can we beat the prices of our competitors?
- Unique 2nd generation design allows us to reduce costs.
- Long-lasting, reliable LED based technology.
- No service contracts, EVER.
- Windows 10 Pro allows free remote support.
- DICOM and Review Station SW all included.
Technical Specifications
| Examination bowl | 300 mm radius, aspherical, closed type, ventilated |
| Tested field range | Superior – 60° (70° with fixation shift) Inferior – 70° Left to right – 180° |
| Testing techniques | Static perimetry Kinetic perimetry |
| Stimulus sizes | Goldmann I to V |
| Stimulus colors | White, green, blue, red |
| Background illumination | White 3,2 cd/m2 (10 asb) White 10 cd/m2 (31,5 asb) Yellow 100 cd/m2 (315 asb) |
| Maximum stimulus intensity | 10000 asb |
| Fixation control | Gaze tracking Blink monitoring Heijl/Krakau EyeSee™ |
| Chinrest control | Electrical up-down Electrical left-right |
| Patient response time | Set manually 0,1 to 9,9 s Adaptive to patient speed |
| Test fields | Radial test field patterns Orthogonal test field patterns G0-2, 5-2, 10-2, 24-2, 24-2C, 30-2, 30-2C, Sup 44/64, Gandolfo G1, G0-2, N1, N2, 07, 60-4, FF81, FF120, FF246, BSV, B1, Nasal, Step |
| Test strategies | Screening (Quantify defect, 3-zone, 2-zone) Threshold (Threshold, Fast Threshold, Advanced Threshold, Dynamic) ZETA™, ZETA™ Fast and ZETA™ Faster Special (BSV, Flicker) Esterman Monocular Test Esterman Binocular Test Kinetic (Manual, Automated, Mixed) |
| Analysis | Single field analysis Result comparison analysis DPA™ Defect Progression Analysis Statistical package |
| Connectivity | DICOM Storage SCU DICOM MWL SCU GDT, TXT, CMDL Networking REVO Structure & Function Interface |
| Device interface | USB 2.0 |
| Dimensions mm (HxWxD) | 606 x 532 x 438, 17 kg |
| Operating Voltage | 100-120 V AC 50-60 Hz or 220-240 V AC 50-60 Hz |
| Power consumption | 100 W |
