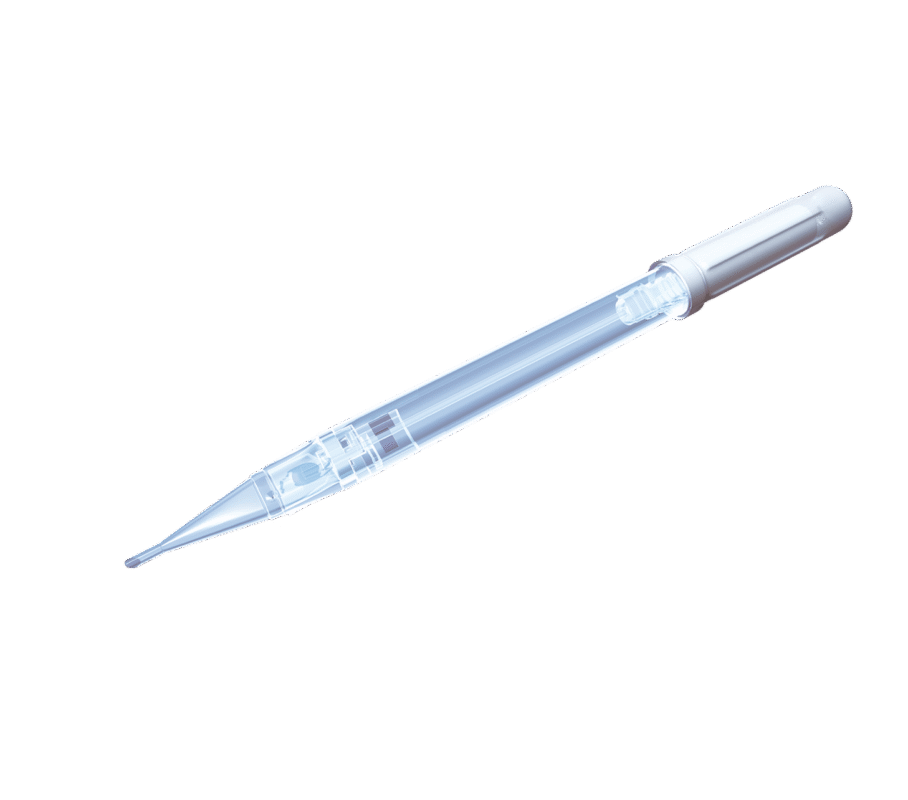

Preloaded Intraocular Lens System (AE2UL, EDoF)
One-step implantation;
Simplified implantation, avoid IOL scratching and secondary infection;
Anterior surface with high-order coefficient aspheric design achieving an extended depth of focus；
Hydrophobic acrylic with UV blocking
Simplified implantation, avoid IOL scratching and secondary infection;
Anterior surface with high-order coefficient aspheric design achieving an extended depth of focus；
Hydrophobic acrylic with UV blocking
Product Description
Product Parameters：
|
Product Model |
AE2UL22, AE2UL24, AE2UL28 |
|
|
Optic Power Range |
Dioptric Power Range and Increments |
+5.0~+36.0D, in 0.5D increments |
|
Optical Design |
Anterior surface with high-order coefficient aspheric design achieving an extended depth of focus |
|
|
Body Diameter |
6.0 mm |
|
|
Overall Diameter |
13.0 mm |
|
|
Haptic Design and Angulation |
Modified “L” loop, 1.5° |
|
|
IOL Material |
Hydrophobic acrylate |
|
|
Filtration |
UV blocking |
|
|
Optimized Constants |
Ultrasound Biometry |
A=118.9 |
|
Optical Biometry |
A=119.2 |
|
|
SRK/T |
A=119.2 |
|
|
SRK/Ⅱ |
A=119.6 |
|
|
Haigis |
a0=1.50, a1=0.40, a2=0.10 |
|
|
Hoffer Q |
pACD=5.69 |
|
|
Holladay І |
Sf=1.95 |
|
|
Holladay Ⅱ |
ACD=5.69 |
|
|
Barrett |
LF=2.0, DF=2.5 |
|
