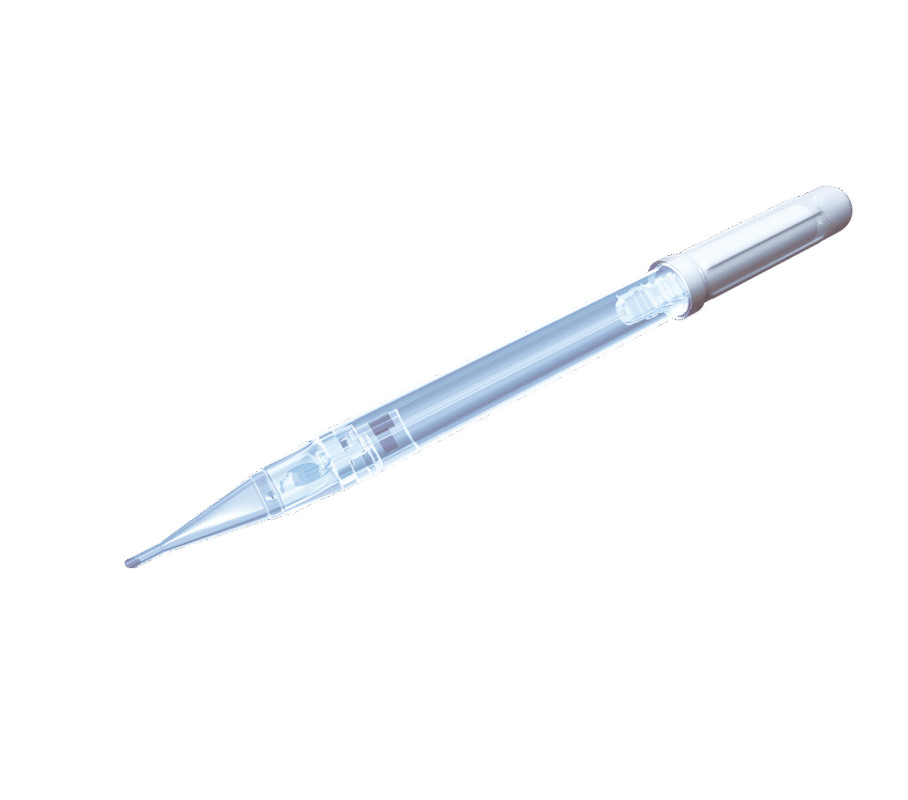

Preloaded Intraocular Lens System (AMUXL, Multifocal EDoF)
One-stepdesign;
Simplified implantation, avoid IOL scratching and secondary infection；
WithinPromingAspheric Diffractive Multifocal IOL;
UV filtering
Simplified implantation, avoid IOL scratching and secondary infection；
WithinPromingAspheric Diffractive Multifocal IOL;
UV filtering
Product Description
Product Parameters：
|
Product Model |
AM1~6UXL22, AM1~6UXL24, AM1~6UXL28 |
|
IOL Material |
Hydrophobic acrylic |
|
Optic Diameter |
6.0 mm |
|
Overall Length |
13.0 mm |
|
Theoretical A Constant |
118.2 |
|
Theoretical A Constant |
Ultrasound biometry A=118.8 Optical biometry A=119.2 SRK/T A=119.2 SRK II A=119.6 Haigis a0=1.50, a1=0.40, a2=0.10 Hoffer Q pACD=5.69 Holladay sf=1.95 Holladay II ACD=5.69 Barrett LF=2.0, DF=2.5 |
|
Opticaldesign |
Anterior toric surface, posterior high order aspheric surface |
|
Haptic Design and Angulation |
Modified “L”loop, 1.5° |
|
Light filtering |
UV filtering |
|
Optic Power Range |
Diopter:+6.0D~+30.0D , 0.5D increments Additionaldiopter: 2.00D, 2.40D, 2.80D, 3.20D, 3.60D, 4.00D |
